Raxio data centre: CIV1

The future of digital transformation is here. Start yours at Raxio CIV1.

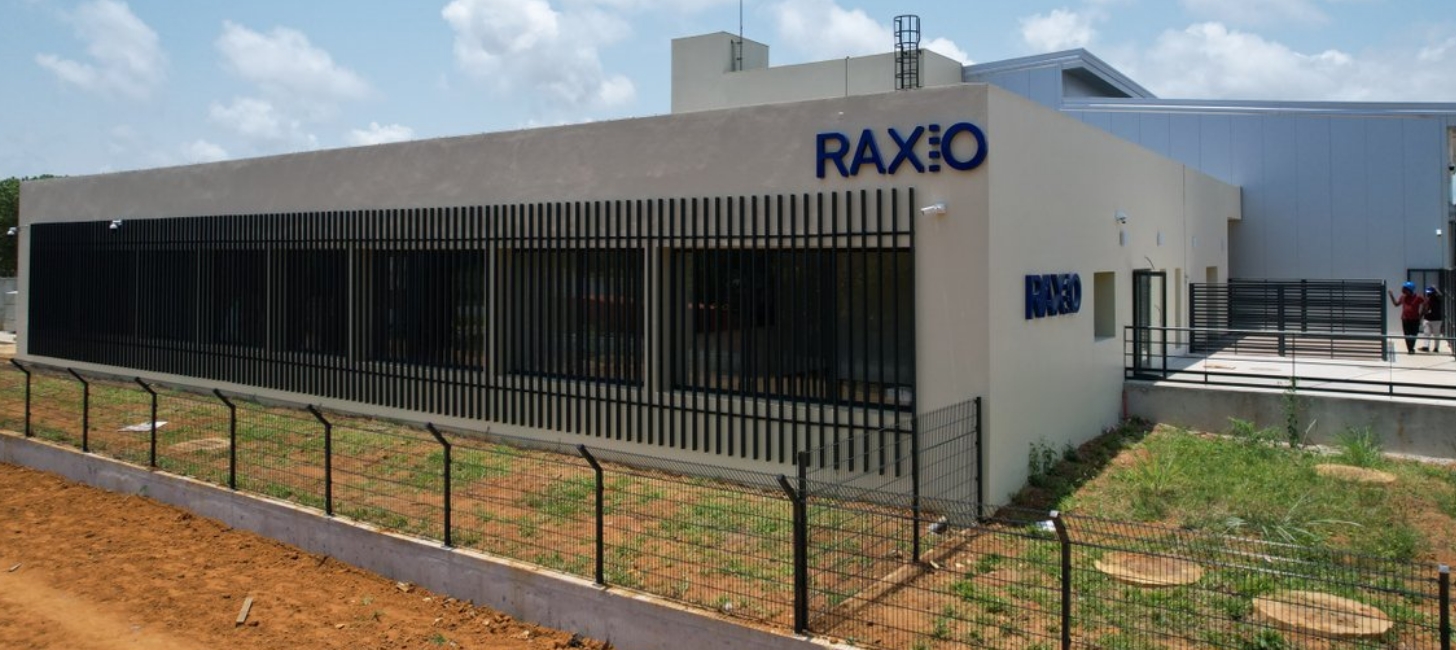

Raxio CIV1 is the country’s first carrier-neutral Tier III data centre facility and will support the country and the wider region by enabling digital transformation and bridging international and local connectivity.

Schedule a tour


    I agree to receive Raxio Group's newsletters with updates and information on all products and services.

    Introduction

    Infrastructure for Transformation, Innovation, and Growth

    Côte d’Ivoire is the fastest growing economy in francophone West Africa and will serve customers in Abidjan and the wider UEMOA region at a time when digital transformation, data and content consumption, and connectivity are all increasing at historic rates.



    Technical Specifications

    Raxio CIV1 Data Centre

    Location

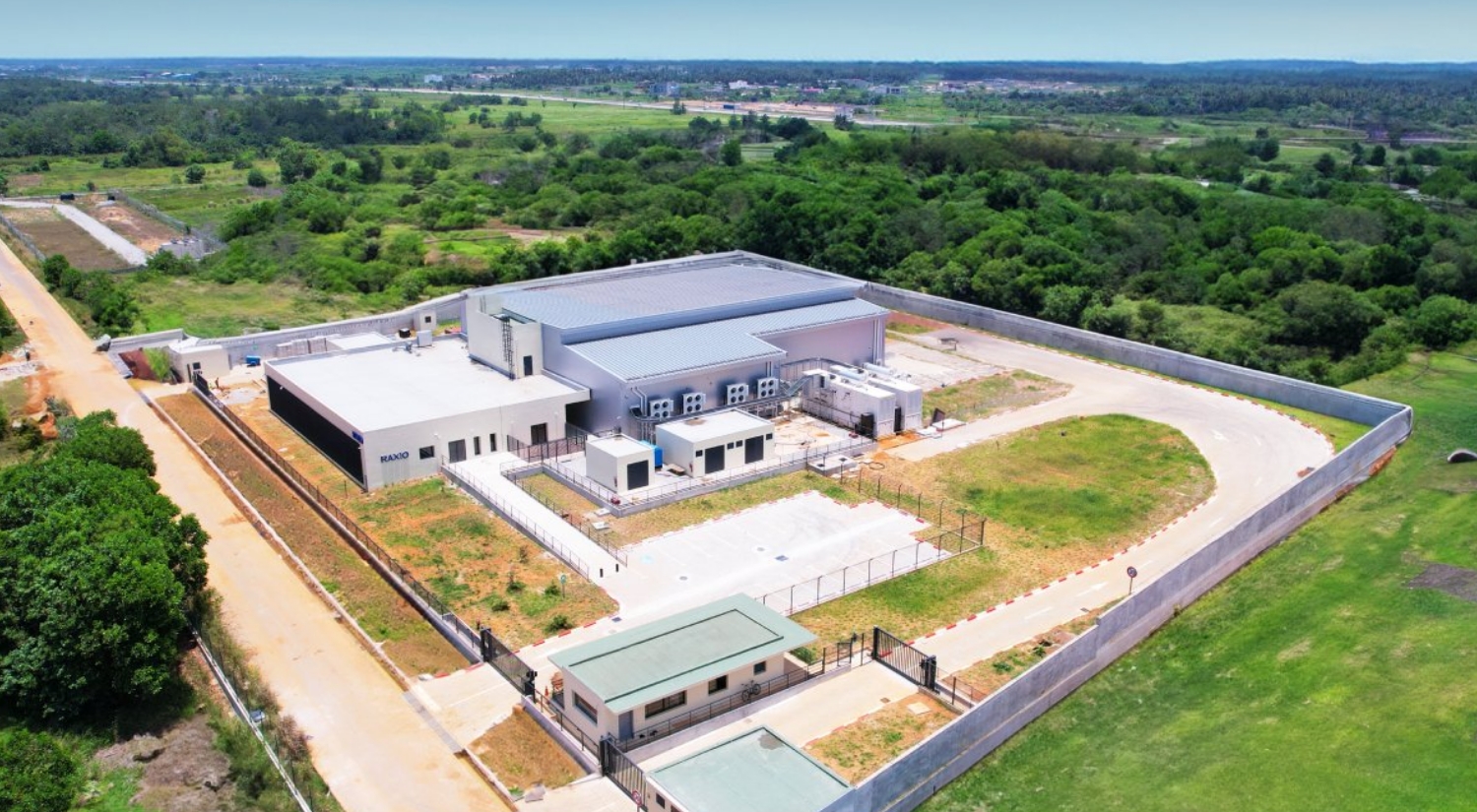

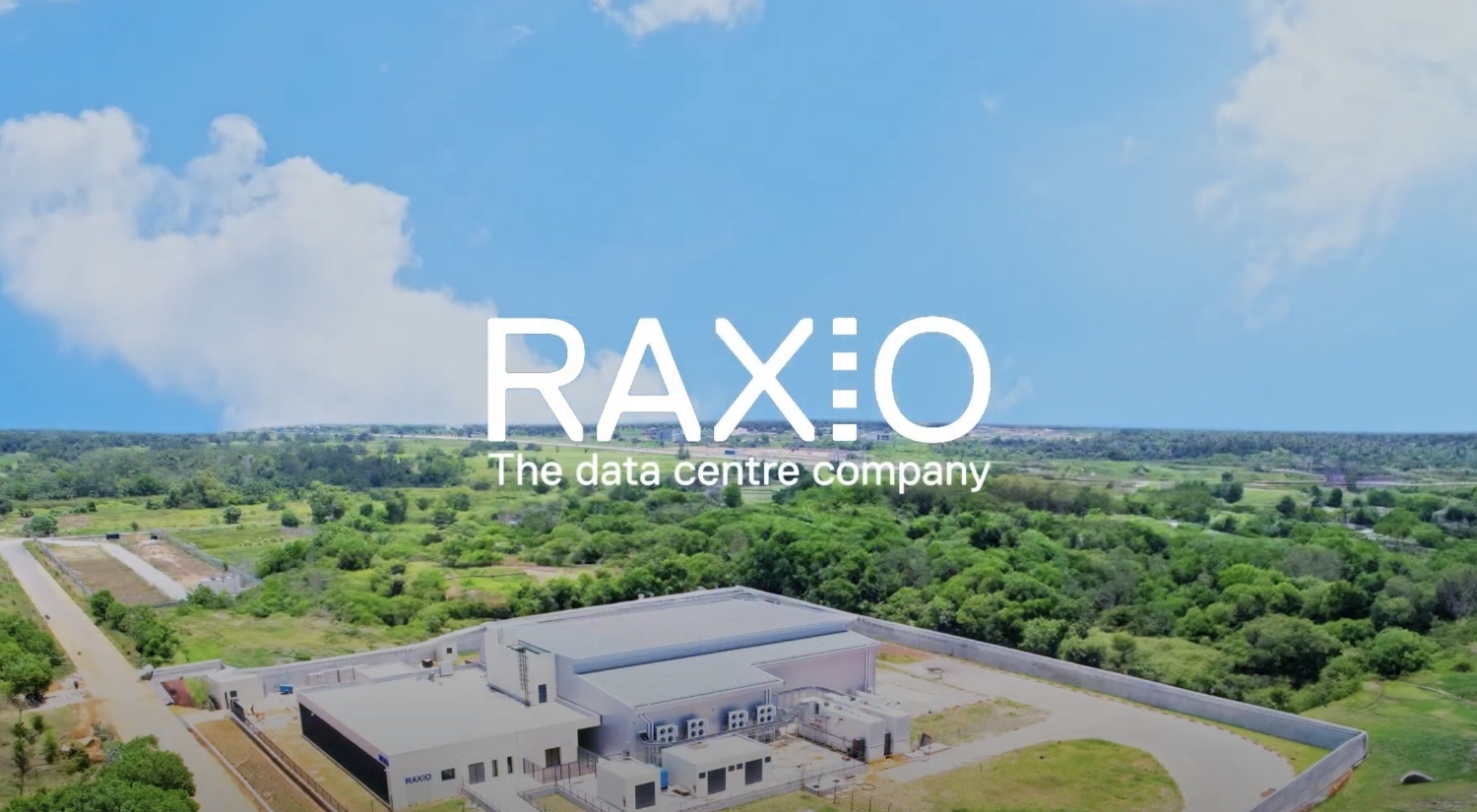

    • The data centre is located in Grand Bassam, inside the Village of Innovation and Technology (VITIB)
    • Along major fibre routes
    • 30 kms from the city centre of Abidjan
    Main Structural Overview
    • Administration block and ancillary building are traditional construction
    • Data hall and MEP rooms is steel frame with concrete floors with vertical steel plate wall
    • 5.6m slab to slab height
    • Floor loading 15kN/m2

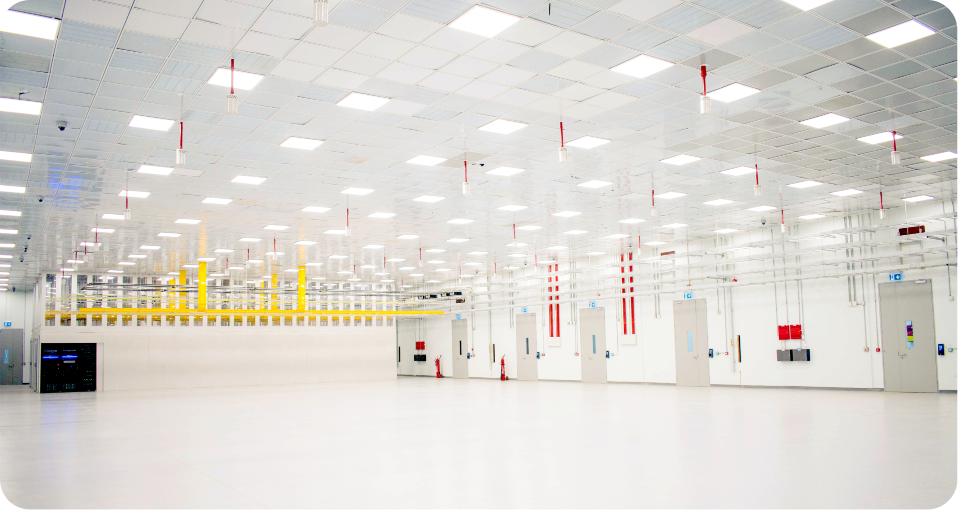

    Building Overview
    • Purpose build facility from the ground up
    • 54U 600x1200mm racks
    • Scalable to Double Floor
    • 2000 m2 of white space
    • Flexible IT space with the ability to create bespoke environments as required

    Power Supply
    • 15kV utility supply directly fed from the nearest Substation
    Fuel Backup Storage
    • On-site fuel storage to support 48 hours at full capacity with 24x7x365 fuel delivery
    • 7 min UPS autonomy
    Redundancy
    • 2N power redundancy from MV Transformer, Generator, UPS, Busbar to Rack PDU
    • Fully diverse power distribution to technical areas

    Cooling System
    • 3MW of installed cooling provision initially
    • Minimum N+1 resilience on all systems
    Energy Efficiency
    • Energy efficient indirect adiabatic cooling
    • Environmental Sustainable with PuE of 1.3
    Humidity Control
    • Humidity in technical space is controlled within the recommended range of ASHRAE TC9.9

    Carrier Neutral
    • Carrier neutral with 8 connectivity providers terminating fibre to the facility
    Cloud Services
    • Access to multiple cloud services through leading public, private and hybrid cloud solution providers
    Network Dense
    • With access to multiple global and regional carriers and Internet service providers offering
    • Dark Fibre, IP Transit, Peering, CDN, Storage, Virtualised Services (SDN), Voice and Mobile Services
    Diversity
    • 2 dedicated Meet Me Rooms
    • 2 diverse fibre intake points
    • Diverse cable routes and pathways

    24x7x365 Manned Guards
    • Security Operations Centre manned 24x7x365
    • Security guard patrols 24x7x365
    • Secure managed delivery and loading area available 24x7x365
    Fire Detection and Suppression
    • Analogue addressable fire detection system in all areas
    • Aspirated early warning smoke detection system VESDA (monitored 24x7x365)
    • Fire suppression system protects data hall and all technical areas
    Intruder Detection Systems
    • Continuous CCTV surveillance of external and internal areas
    • Comprehensive intruder detection and alarms in all areas
    • 3m boundary wall with razor wire
    • Vehicle crash protection road blocker at the site entrance
      Access control using proximity card readers and biometric readers
    CIV1 Key Facts
    • Tier III Certified
    • 400 Racks
    • 2,000 m2
    • 3 MW IT Power
    • 7 Security Layers
    • Colocation
    • Cross Connect
    • 24/7 Support
    • Fibre

    Solutions

    Why Raxio Côte d’Ivoire

    Colocation

    Cut IT expenses with cost-efficient colocation services.

    Carrier neutral

    Enable customers to interconnect and choose from a diverse range of carriers.

    Secure

    Enjoy 24/7 monitoring and industry-standard compliance.

    Tier III certified

    Uptime Institute Tier III certified, ensuring 99.98% uptime with fully redundant systems.

    Scalable

    Easily expand or adjust your IT resources as needed.

    Connectivity

    Providing a plug-and-play digital ecosystem of cloud, carrier, and IXP connections.

    Sustainability

    Reduce your carbon footprint with energy-efficient practices.

    Expert Support

    Rely on 24/7, 365 technical support

    Ideal location

    Strategically along main fibre route at the Village of Innovation and Technology in Grand Bassam.

    The vision

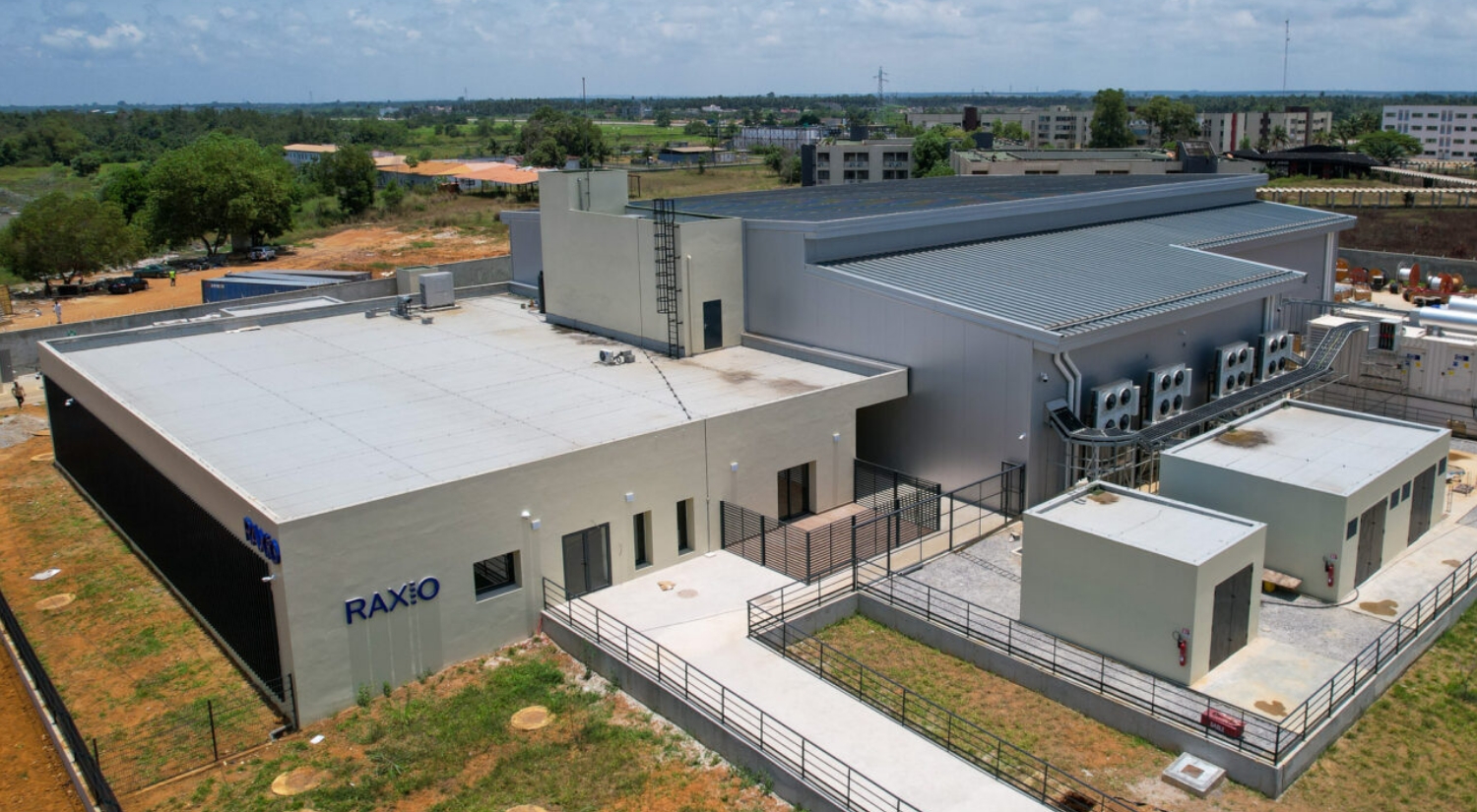

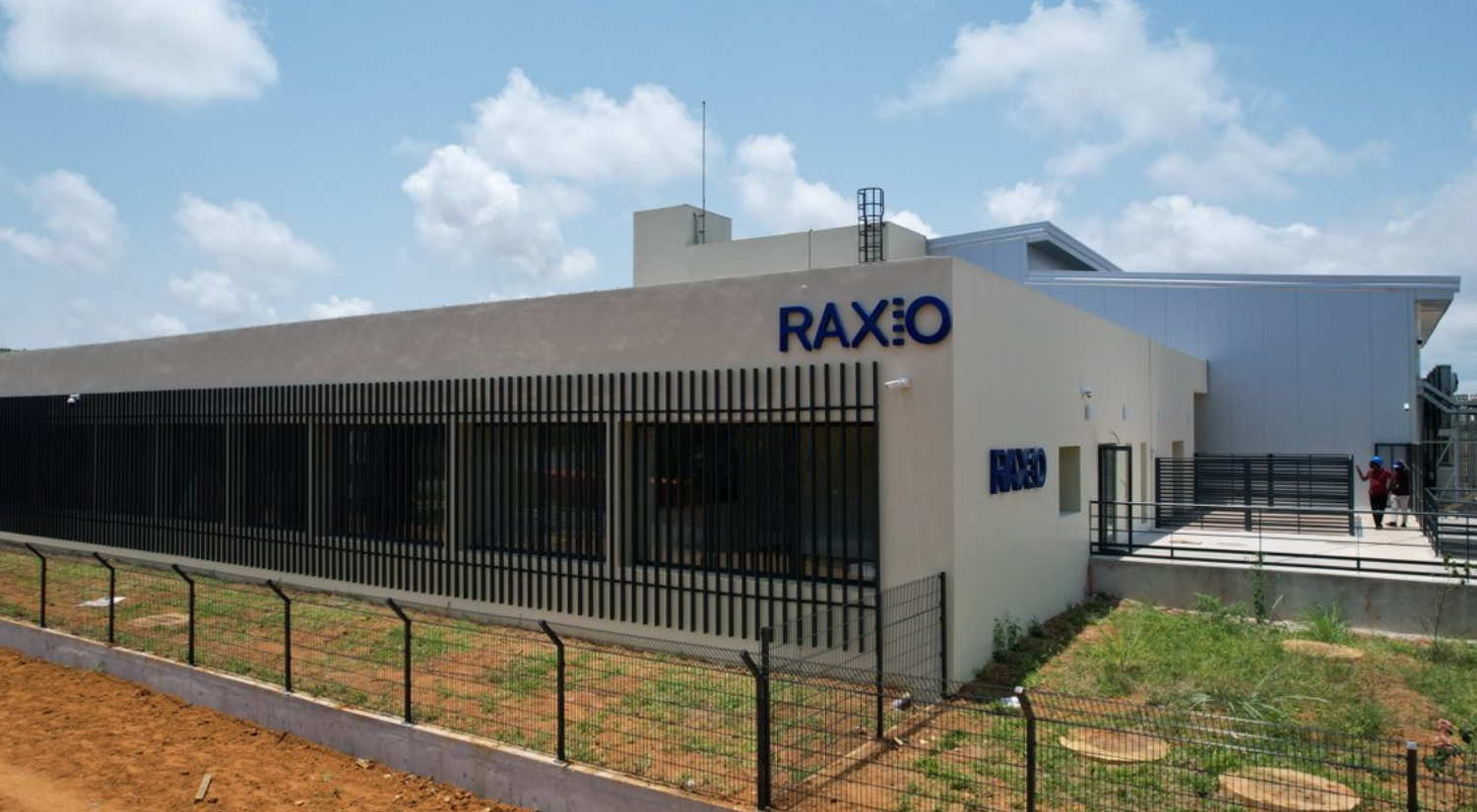

    Raxio CIV1 Data Centre is an enterprise-grade data centre located on the outskirt of Abidjan, Côte d’Ivoire

    Raxio Côte d’Ivoire offers its customers an optimised environment for their IT equipment in a state-of-the-art, modular facility, fully equipped with industry’s best in technology, security, AC/DC power compatibility and redundancy. Opened in 2024, Raxio Côte d’Ivoire will deliver much-needed colocation capacity, cross-connection services with local and international carriers, and a series of value-added services to the entire region.

    Partner Network

    Connectivity Providers

    prev
    next

    Raxio Côte d’Ivoire is proud to host an ecosystem of local and international connectivity providers within our data centre. We have a number of Carriers, Cloud Service Providers and Internet Exchange Points that are present within our facility. Our carrier and connectivity neutral environment ensures customers have direct access to a wide range of trusted partners enabling flexible, low-cost, and high-performance interconnections.

    Raxio Côte d’Ivoire

    CIV1 Management Team

    Raxio Côte d’Ivoire will open up new opportunities for financial services, governments and small to medium enterprises (SMEs) by addressing their mission-critical needs for data storage, business continuity and disaster recovery.
